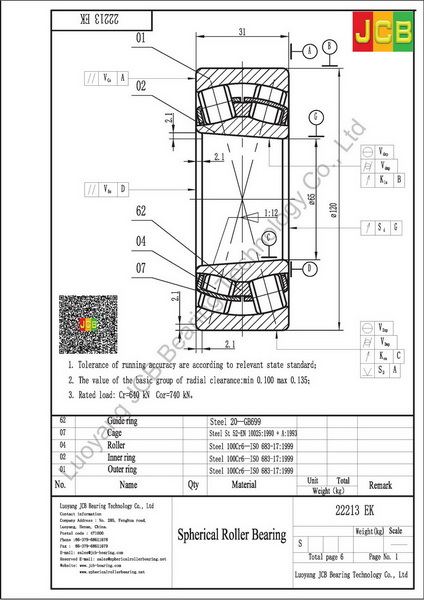

Drawing
22213 EK
Specifications
| Principal dimensions (d) | 65 |
| Principal dimensions (D) | 120 |
| Principal dimensions (B) | 31 |
| Basic load ratings dynamic (C) | 193 |
| Basic load ratings static (C0) | 216 |
| Fatigue load limit (Pu) | 24 |
| Speed ratings Lubrication grease | 3800 |
| Speed ratings Lubrication oil | 4800 |
| Mass | 1.55 |
| Dimensions (d) | 65 |
| Dimensions (d2) | 80 |
| Dimensions (D1) | 106 |
| Dimensions (b) | 5.5 |
| Dimensions (k) | 3 |
| Dimensions (r mim) | 1.5 |
| Abutment and filet dimensions (da min) | 74 |
| Abutment and filet dimensions (Da max) | 111 |
| Abutment and filet dimensions (ra max) | 1.5 |
| Calculation factors (e) | 0.24 |
| Calculation factors (Y1) | 2.8 |
| Calculation factors (Y2) | 4.2 |
| Calculation factors (Y0) | 2.8 |
