Product

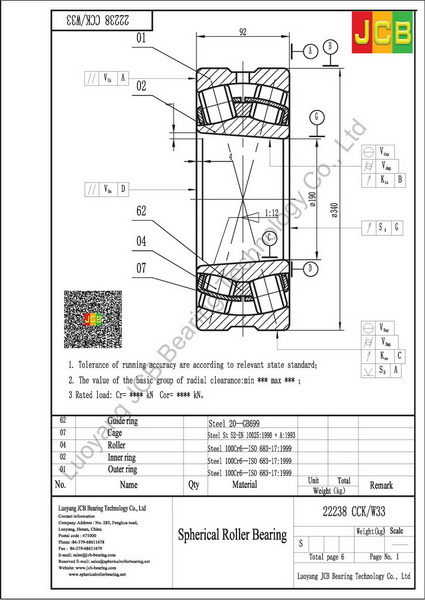

Drawing
22238 CCK/W33
Specifications
| Principal dimensions (d) | 190 |
| Principal dimensions (D) | 340 |
| Principal dimensions (B) | 92 |
| Basic load ratings dynamic (C) | 1270 |
| Basic load ratings static (C0) | 1700 |
| Fatigue load limit (Pu) | 150 |
| Speed ratings Lubrication grease | 1200 |
| Speed ratings Lubrication oil | 1600 |
| Mass | 36.5 |
| Dimensions (d) | 190 |
| Dimensions (d2) | 225 |
| Dimensions (D1) | 294 |
| Dimensions (b) | 16.7 |
| Dimensions (k) | 9 |
| Dimensions (r mim) | 4 |
| Abutment and filet dimensions (da min) | 207 |
| Abutment and filet dimensions (Da max) | 323 |
| Abutment and filet dimensions (ra max) | 3 |
| Calculation factors (e) | 0.26 |
| Calculation factors (Y1) | 2.6 |
| Calculation factors (Y2) | 3.9 |
| Calculation factors (Y0) | 2.5 |
