Product

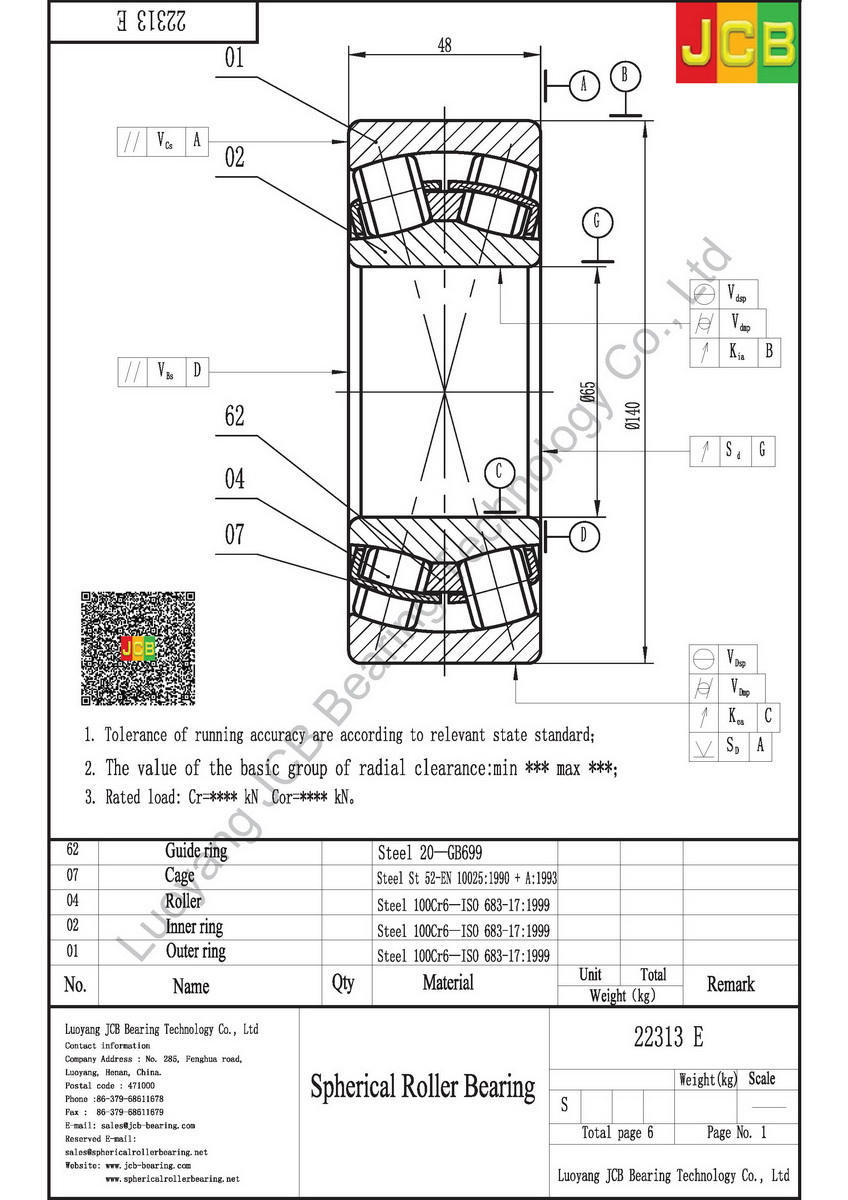

Drawing
22313 E
Specifications
| Principal dimensions (d) | 65 |
| Principal dimensions (D) | 140 |
| Principal dimensions (B) | 48 |
| Basic load ratings dynamic (C) | 340 |
| Basic load ratings static (C0) | 360 |
| Fatigue load limit (Pu) | 38 |
| Speed ratings Lubrication grease | 2600 |
| Speed ratings Lubrication oil | 3400 |
| Mass | 3.75 |
| Dimensions (d) | 65 |
| Dimensions (d2) | 81.6 |
| Dimensions (D1) | 118 |
| Dimensions (b) | 8.3 |
| Dimensions (k) | 4.5 |
| Dimensions (r mim) | 2.1 |
| Abutment and filet dimensions (da min) | 77 |
| Abutment and filet dimensions (Da max) | 128 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.35 |
| Calculation factors (Y1) | 1.9 |
| Calculation factors (Y2) | 2.9 |
| Calculation factors (Y0) | 1.8 |
Description
点击这里添加您自己的文本
