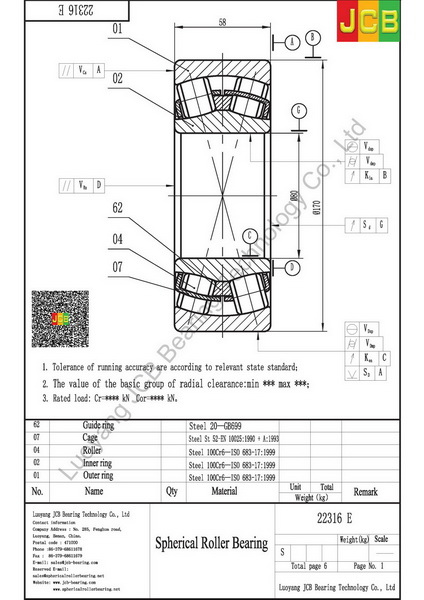

Drawing
22316 E
Specifications
| Principal dimensions (d) | 80 |
| Principal dimensions (D) | 170 |
| Principal dimensions (B) | 58 |
| Basic load ratings dynamic (C) | 490 |
| Basic load ratings static (C0) | 540 |
| Fatigue load limit (Pu) | 54 |
| Speed ratings Lubrication grease | 2000 |
| Speed ratings Lubrication oil | 2800 |
| Mass | 6.6 |
| Dimensions (d) | 80 |
| Dimensions (d2) | 98.3 |
| Dimensions (D1) | 143 |
| Dimensions (b) | 8.3 |
| Dimensions (k) | 4.5 |
| Dimensions (r mim) | 2.1 |
| Abutment and filet dimensions (da min) | 92 |
| Abutment and filet dimensions (Da max) | 158 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.35 |
| Calculation factors (Y1) | 1.9 |
| Calculation factors (Y2) | 2.9 |
| Calculation factors (Y0) | 1.8 |
