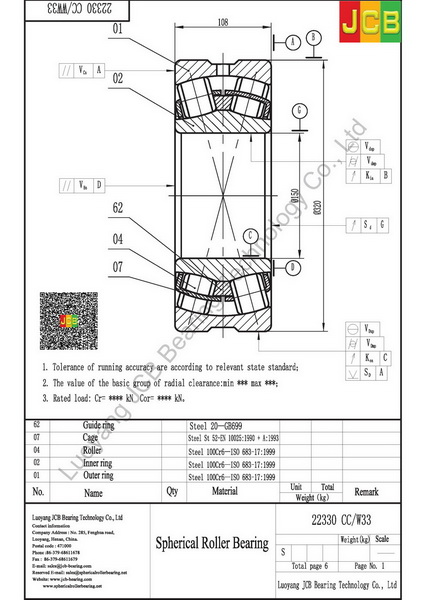

Drawing
22330 CC/W33
Specifications
| Principal dimensions (d) | 150 |
| Principal dimensions (D) | 320 |
| Principal dimensions (B) | 108 |
| Basic load ratings dynamic (C) | 1460 |
| Basic load ratings static (C0) | 170 |
| Fatigue load limit (Pu) | 146 |
| Speed ratings Lubrication grease | 1000 |
| Speed ratings Lubrication oil | 1400 |
| Mass | 43.5 |
| Dimensions (d) | 150 |
| Dimensions (d2) | 188 |
| Dimensions (D1) | 266 |
| Dimensions (b) | 16.7 |
| Dimensions (k) | 9 |
| Dimensions (r mim) | 4 |
| Abutment and filet dimensions (da min) | 167 |
| Abutment and filet dimensions (Da max) | 303 |
| Abutment and filet dimensions (ra max) | 3 |
| Calculation factors (e) | 0.35 |
| Calculation factors (Y1) | 1.9 |
| Calculation factors (Y2) | 2.9 |
| Calculation factors (Y0) | 1.8 |
