Product

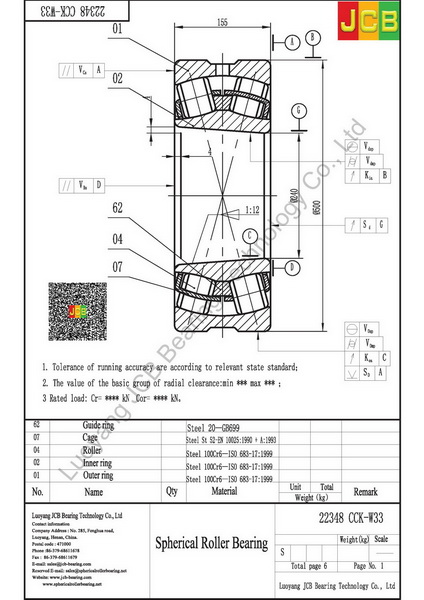

Drawing
22348 CCK/W33
Specifications
| Principal dimensions (d) | 240 |
| Principal dimensions (D) | 500 |
| Principal dimensions (B) | 155 |
| Basic load ratings dynamic (C) | 2670 |
| Basic load ratings static (C0) | 4000 |
| Fatigue load limit (Pu) | 290 |
| Speed ratings Lubrication grease | 670 |
| Speed ratings Lubrication oil | 850 |
| Mass | 155 |
| Dimensions (d) | 240 |
| Dimensions (d2) | 304 |
| Dimensions (D1) | 422 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 5 |
| Abutment and filet dimensions (da min) | 260 |
| Abutment and filet dimensions (Da max) | 480 |
| Abutment and filet dimensions (ra max) | 4 |
| Calculation factors (e) | 0.31 |
| Calculation factors (Y1) | 2.2 |
| Calculation factors (Y2) | 3.3 |
| Calculation factors (Y0) | 2.2 |
