Product

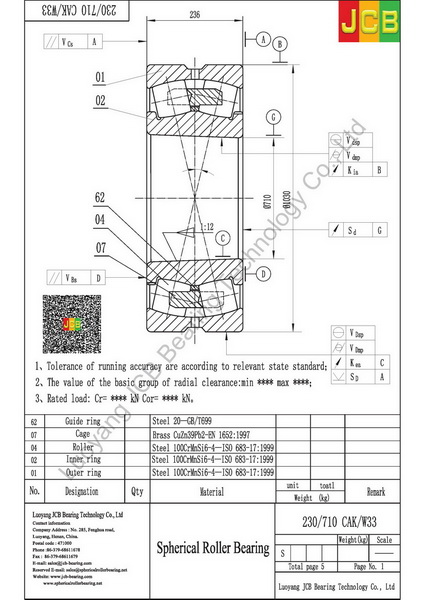

Drawing
230/710 CAK/W33
Specifications
| Principal dimensions (d) | 710 |
| Principal dimensions (D) | 1030 |
| Principal dimensions (B) | 236 |
| Basic load ratings dynamic (C) | 7250 |
| Basic load ratings static (C0) | 16300 |
| Fatigue load limit (Pu) | 1000 |
| Speed ratings Lubrication grease | 220 |
| Speed ratings Lubrication oil | 300 |
| Mass | 670 |
| Dimensions (d) | 710 |
| Dimensions (d2) | 814 |
| Dimensions (D1) | 939 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 7.5 |
| Abutment and filet dimensions (da min) | 738 |
| Abutment and filet dimensions (Da max) | 1002 |
| Abutment and filet dimensions (ra max) | 6 |
| Calculation factors (e) | 0.21 |
| Calculation factors (Y1) | 3.2 |
| Calculation factors (Y2) | 4.8 |
| Calculation factors (Y0) | 3.2 |
