Product

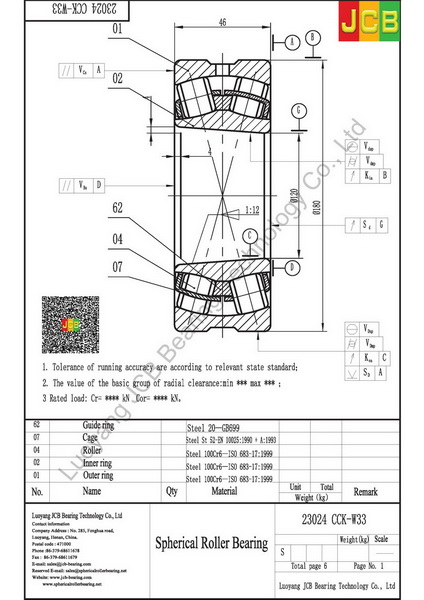

Drawing
23024 CCK/W33
Specifications
| Principal dimensions (d) | 120 |
| Principal dimensions (D) | 180 |
| Principal dimensions (B) | 46 |
| Basic load ratings dynamic (C) | 355 |
| Basic load ratings static (C0) | 500 |
| Fatigue load limit (Pu) | 52 |
| Speed ratings Lubrication grease | 2000 |
| Speed ratings Lubrication oil | 2800 |
| Mass | 4.2 |
| Dimensions (d) | 120 |
| Dimensions (d2) | 135 |
| Dimensions (D1) | 163 |
| Dimensions (b) | 5.5 |
| Dimensions (k) | 3 |
| Dimensions (r mim) | 2 |
| Abutment and filet dimensions (da min) | 130 |
| Abutment and filet dimensions (Da max) | 170 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.22 |
| Calculation factors (Y1) | 3 |
| Calculation factors (Y2) | 4.6 |
| Calculation factors (Y0) | 2.8 |
