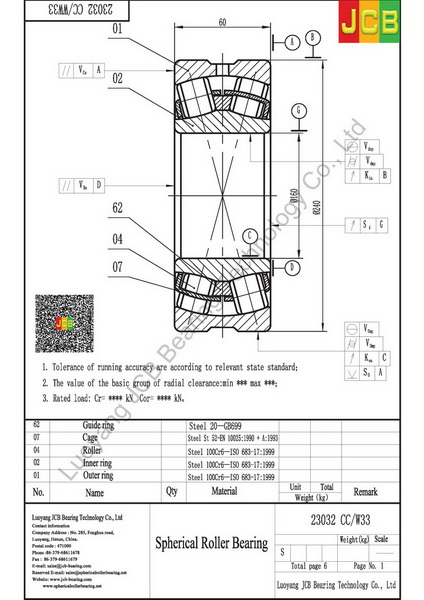

Drawing
23032 CC/W33
Specifications
| Principal dimensions (d) | 160 |
| Principal dimensions (D) | 240 |
| Principal dimensions (B) | 60 |
| Basic load ratings dynamic (C) | 585 |
| Basic load ratings static (C0) | 880 |
| Fatigue load limit (Pu) | 83 |
| Speed ratings Lubrication grease | 1700 |
| Speed ratings Lubrication oil | 2200 |
| Mass | 9.7 |
| Dimensions (d) | 160 |
| Dimensions (d2) | 180 |
| Dimensions (D1) | 217 |
| Dimensions (b) | 11.1 |
| Dimensions (k) | 6 |
| Dimensions (r mim) | 2.1 |
| Abutment and filet dimensions (da min) | 171 |
| Abutment and filet dimensions (Da max) | 229 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.22 |
| Calculation factors (Y1) | 3 |
| Calculation factors (Y2) | 4.6 |
| Calculation factors (Y0) | 2.8 |
