Product

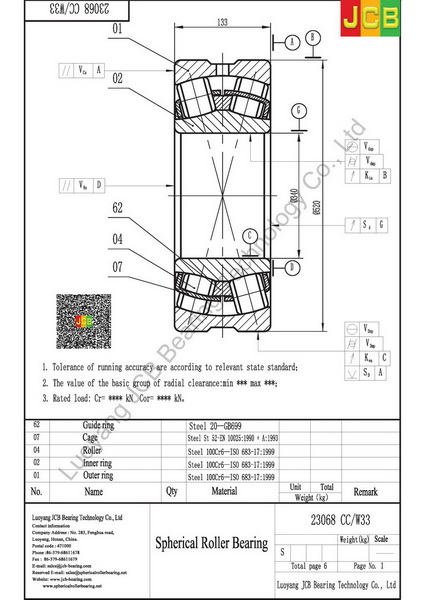

Drawing
23068 CCK/W33
Specifications
| Principal dimensions (d) | 340 |
| Principal dimensions (D) | 520 |
| Principal dimensions (B) | 133 |
| Basic load ratings dynamic (C) | 2700 |
| Basic load ratings static (C0) | 4550 |
| Fatigue load limit (Pu) | 335 |
| Speed ratings Lubrication grease | 700 |
| Speed ratings Lubrication oil | 900 |
| Mass | 105 |
| Dimensions (d) | 340 |
| Dimensions (d2) | 385 |
| Dimensions (D1) | 467 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 5 |
| Abutment and filet dimensions (da min) | 358 |
| Abutment and filet dimensions (Da max) | 502 |
| Abutment and filet dimensions (ra max) | 4 |
| Calculation factors (e) | 0.24 |
| Calculation factors (Y1) | 2.8 |
| Calculation factors (Y2) | 4.2 |
| Calculation factors (Y0) | 2.8 |
Description
点击这里添加您自己的文本
