Product

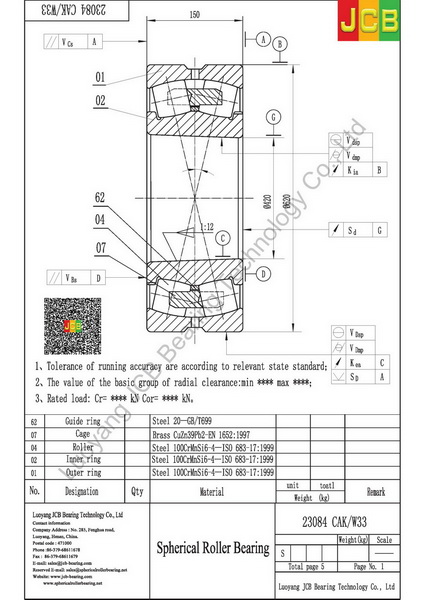

Drawing
23084 CA/W33
Specifications
| Principal dimensions (d) | 420 |
| Principal dimensions (D) | 620 |
| Principal dimensions (B) | 150 |
| Basic load ratings dynamic (C) | 2990 |
| Basic load ratings static (C0) | 6000 |
| Fatigue load limit (Pu) | 415 |
| Speed ratings Lubrication grease | 450 |
| Speed ratings Lubrication oil | 560 |
| Mass | 155 |
| Dimensions (d) | 420 |
| Dimensions (d2) | 485 |
| Dimensions (D1) | 562 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 5 |
| Abutment and filet dimensions (da min) | 438 |
| Abutment and filet dimensions (Da max) | 602 |
| Abutment and filet dimensions (ra max) | 4 |
| Calculation factors (e) | 0.22 |
| Calculation factors (Y1) | 3 |
| Calculation factors (Y2) | 4.6 |
| Calculation factors (Y0) | 2.8 |
