Product

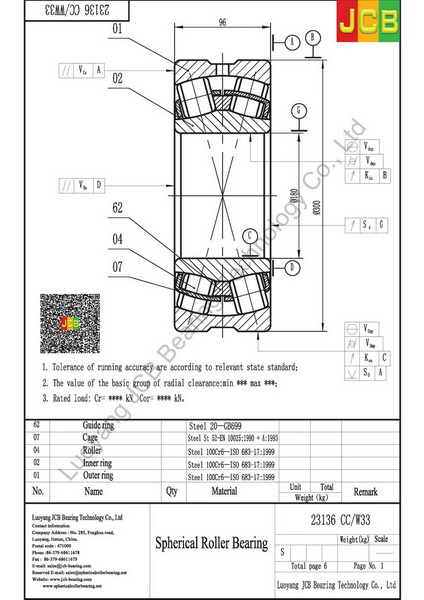

Drawing
23136 CC/W33
Specifications
| Principal dimensions (d) | 180 |
| Principal dimensions (D) | 300 |
| Principal dimensions (B) | 96 |
| Basic load ratings dynamic (C) | 1200 |
| Basic load ratings static (C0) | 1760 |
| Fatigue load limit (Pu) | 160 |
| Speed ratings Lubrication grease | 1100 |
| Speed ratings Lubrication oil | 1500 |
| Mass | 28 |
| Dimensions (d) | 180 |
| Dimensions (d2) | 207 |
| Dimensions (D1) | 259 |
| Dimensions (b) | 13.9 |
| Dimensions (k) | 7.5 |
| Dimensions (r mim) | 3 |
| Abutment and filet dimensions (da min) | 194 |
| Abutment and filet dimensions (Da max) | 286 |
| Abutment and filet dimensions (ra max) | 2.5 |
| Calculation factors (e) | 0.3 |
| Calculation factors (Y1) | 2.3 |
| Calculation factors (Y2) | 3.4 |
| Calculation factors (Y0) | 2.2 |
