Product

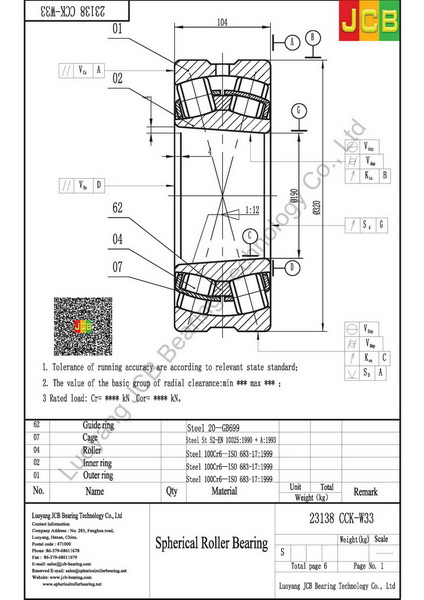

Drawing
23138 CCK/W33
Specifications
| Principal dimensions (d) | 190 |
| Principal dimensions (D) | 320 |
| Principal dimensions (B) | 104 |
| Basic load ratings dynamic (C) | 1370 |
| Basic load ratings static (C0) | 2080 |
| Fatigue load limit (Pu) | 183 |
| Speed ratings Lubrication grease | 1000 |
| Speed ratings Lubrication oil | 1400 |
| Mass | 35 |
| Dimensions (d) | 190 |
| Dimensions (d2) | 220 |
| Dimensions (D1) | 276 |
| Dimensions (b) | 13.9 |
| Dimensions (k) | 7.5 |
| Dimensions (r mim) | 3 |
| Abutment and filet dimensions (da min) | 204 |
| Abutment and filet dimensions (Da max) | 306 |
| Abutment and filet dimensions (ra max) | 2.5 |
| Calculation factors (e) | 0.31 |
| Calculation factors (Y1) | 2.2 |
| Calculation factors (Y2) | 3.3 |
| Calculation factors (Y0) | 2.2 |
