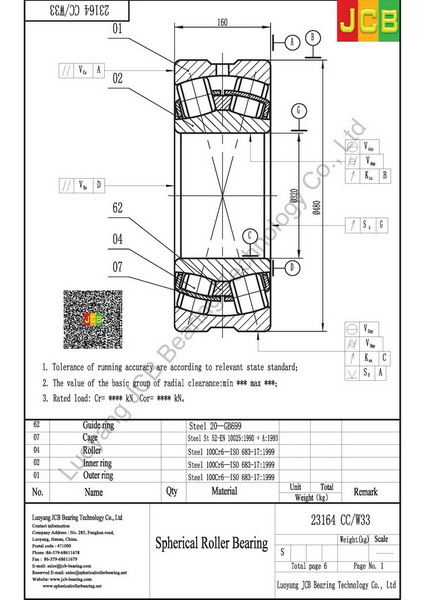

Drawing
23164 CC/W33
Specifications
| Principal dimensions (d) | 320 |
| Principal dimensions (D) | 540 |
| Principal dimensions (B) | 176 |
| Basic load ratings dynamic (C) | 3750 |
| Basic load ratings static (C0) | 6000 |
| Fatigue load limit (Pu) | 440 |
| Speed ratings Lubrication grease | 630 |
| Speed ratings Lubrication oil | 800 |
| Mass | 165 |
| Dimensions (d) | 320 |
| Dimensions (d2) | 370 |
| Dimensions (D1) | 465 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 5 |
| Abutment and filet dimensions (da min) | 340 |
| Abutment and filet dimensions (Da max) | 520 |
| Abutment and filet dimensions (ra max) | 4 |
| Calculation factors (e) | 0.31 |
| Calculation factors (Y1) | 2.2 |
| Calculation factors (Y2) | 3.3 |
| Calculation factors (Y0) | 2.2 |
