Product

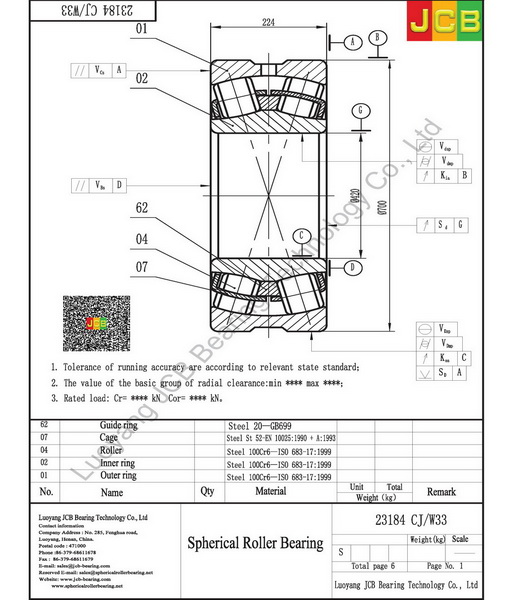

Drawing
23184 CJ/W33
Specifications
| Principal dimensions (d) | 420 |
| Principal dimensions (D) | 700 |
| Principal dimensions (B) | 224 |
| Basic load ratings dynamic (C) | 4890 |
| Basic load ratings static (C0) | 9300 |
| Fatigue load limit (Pu) | 620 |
| Speed ratings Lubrication grease | 360 |
| Speed ratings Lubrication oil | 450 |
| Mass | 350 |
| Dimensions (d) | 420 |
| Dimensions (d2) | 483 |
| Dimensions (D1) | 607 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 6 |
| Abutment and filet dimensions (da min) | 446 |
| Abutment and filet dimensions (Da max) | 674 |
| Abutment and filet dimensions (ra max) | 5 |
| Calculation factors (e) | 0.3 |
| Calculation factors (Y1) | 2.3 |
| Calculation factors (Y2) | 3.4 |
| Calculation factors (Y0) | 2.2 |
