Product

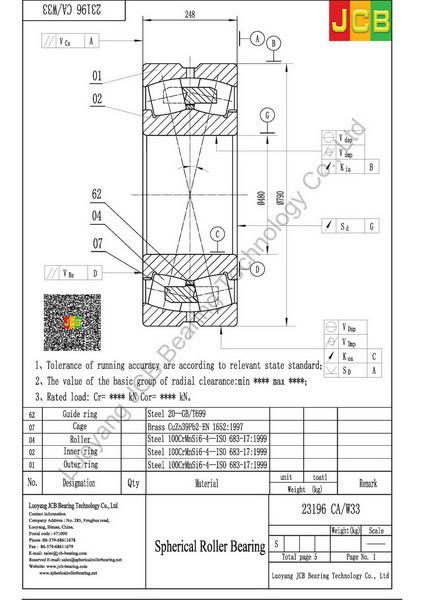

Drawing
23196 CA/W33
Specifications
| Principal dimensions (d) | 480 |
| Principal dimensions (D) | 790 |
| Principal dimensions (B) | 248 |
| Basic load ratings dynamic (C) | 6100 |
| Basic load ratings static (C0) | 12000 |
| Fatigue load limit (Pu) | 780 |
| Speed ratings Lubrication grease | 300 |
| Speed ratings Lubrication oil | 380 |
| Mass | 485 |
| Dimensions (d) | 480 |
| Dimensions (d2) | 577 |
| Dimensions (D1) | 692 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 7.5 |
| Abutment and filet dimensions (da min) | 512 |
| Abutment and filet dimensions (Da max) | 758 |
| Abutment and filet dimensions (ra max) | 6 |
| Calculation factors (e) | 0.3 |
| Calculation factors (Y1) | 2.3 |
| Calculation factors (Y2) | 3.4 |
| Calculation factors (Y0) | 2.2 |
