Product

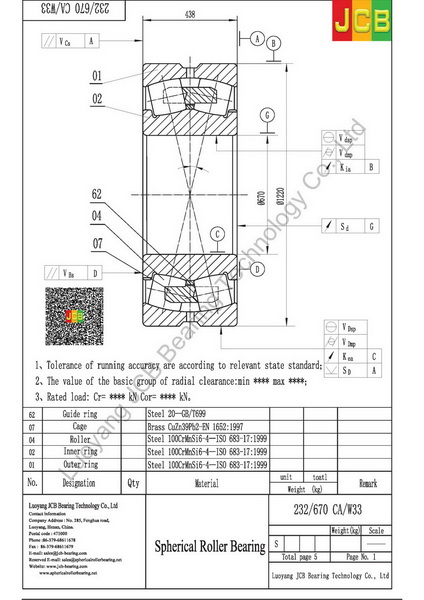

Drawing
232/670 CA/W33
Specifications
| Principal dimensions (d) | 670 |
| Principal dimensions (D) | 1220 |
| Principal dimensions (B) | 438 |
| Basic load ratings dynamic (C) | 15400 |
| Basic load ratings static (C0) | 30500 |
| Fatigue load limit (Pu) | 1700 |
| Speed ratings Lubrication grease | 170 |
| Speed ratings Lubrication oil | 220 |
| Mass | 2270 |
| Dimensions (d) | 670 |
| Dimensions (d2) | 830 |
| Dimensions (D1) | 1027 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 12 |
| Abutment and filet dimensions (da min) | 718 |
| Abutment and filet dimensions (Da max) | 1172 |
| Abutment and filet dimensions (ra max) | 10 |
| Calculation factors (e) | 0.35 |
| Calculation factors (Y1) | 1.9 |
| Calculation factors (Y2) | 2.9 |
| Calculation factors (Y0) | 1.8 |
