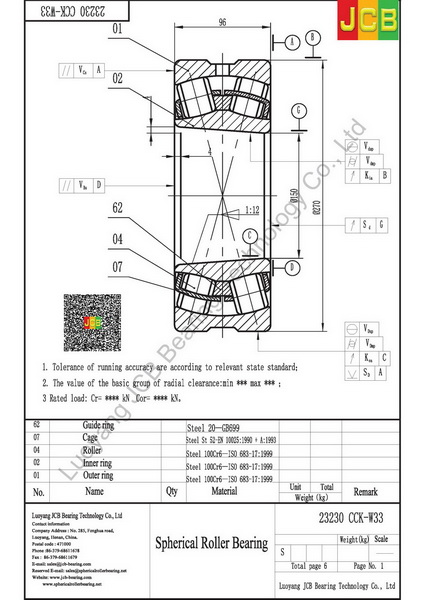

Drawing
23230 CCK/W33
Specifications
| Principal dimensions (d) | 150 |
| Principal dimensions (D) | 270 |
| Principal dimensions (B) | 96 |
| Basic load ratings dynamic (C) | 1080 |
| Basic load ratings static (C0) | 1460 |
| Fatigue load limit (Pu) | 137 |
| Speed ratings Lubrication grease | 1100 |
| Speed ratings Lubrication oil | 1500 |
| Mass | 24.5 |
| Dimensions (d) | 150 |
| Dimensions (d2) | 175 |
| Dimensions (D1) | 228 |
| Dimensions (b) | 11.1 |
| Dimensions (k) | 6 |
| Dimensions (r mim) | 3 |
| Abutment and filet dimensions (da min) | 164 |
| Abutment and filet dimensions (Da max) | 256 |
| Abutment and filet dimensions (ra max) | 2.5 |
| Calculation factors (e) | 0.35 |
| Calculation factors (Y1) | 1.9 |
| Calculation factors (Y2) | 2.9 |
| Calculation factors (Y0) | 1.8 |
