Product

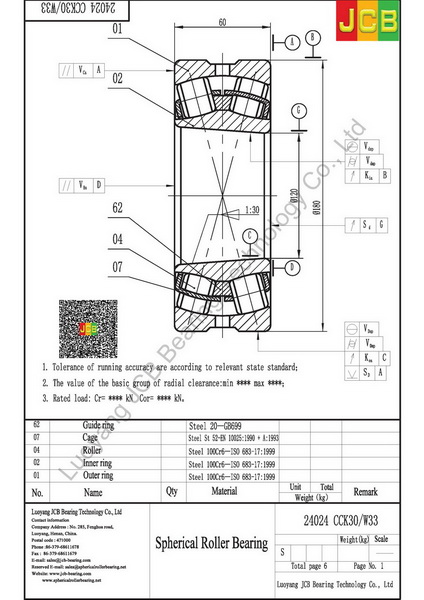

Drawing
24024 CCK30/W33
Specifications
| Principal dimensions (d) | 120 |
| Principal dimensions (D) | 180 |
| Principal dimensions (B) | 60 |
| Basic load ratings dynamic (C) | 430 |
| Basic load ratings static (C0) | 670 |
| Fatigue load limit (Pu) | 68 |
| Speed ratings Lubrication grease | 1600 |
| Speed ratings Lubrication oil | 2000 |
| Mass | 5.45 |
| Dimensions (d) | 120 |
| Dimensions (d2) | 132 |
| Dimensions (D1) | 159 |
| Dimensions (b) | 5.5 |
| Dimensions (k) | 3 |
| Dimensions (r mim) | 2 |
| Abutment and filet dimensions (da min) | 130 |
| Abutment and filet dimensions (Da max) | 170 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.3 |
| Calculation factors (Y1) | 2.3 |
| Calculation factors (Y2) | 3.4 |
| Calculation factors (Y0) | 2.2 |
