Product

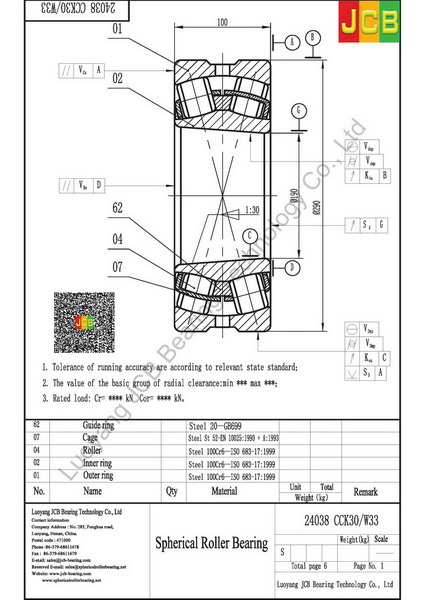

Drawing
24038 CCK30/W33
Specifications
| Principal dimensions (d) | 190 |
| Principal dimensions (D) | 290 |
| Principal dimensions (B) | 100 |
| Basic load ratings dynamic (C) | 978 |
| Basic load ratings static (C0) | 1800 |
| Fatigue load limit (Pu) | 163 |
| Speed ratings Lubrication grease | 950 |
| Speed ratings Lubrication oil | 1300 |
| Mass | 24.5 |
| Dimensions (d) | 190 |
| Dimensions (d2) | 210 |
| Dimensions (D1) | 253 |
| Dimensions (b) | 8.3 |
| Dimensions (k) | 4.5 |
| Dimensions (r mim) | 2.1 |
| Abutment and filet dimensions (da min) | 201 |
| Abutment and filet dimensions (Da max) | 279 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.31 |
| Calculation factors (Y1) | 2.2 |
| Calculation factors (Y2) | 3.3 |
| Calculation factors (Y0) | 2.2 |
Description
