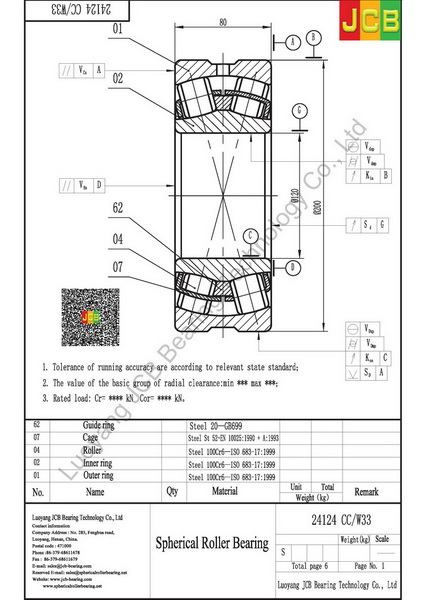

Drawing
24124 CC/W33
Specifications
| Principal dimensions (d) | 120 |
| Principal dimensions (D) | 200 |
| Principal dimensions (B) | 80 |
| Basic load ratings dynamic (C) | 575 |
| Basic load ratings static (C0) | 950 |
| Fatigue load limit (Pu) | 95 |
| Speed ratings Lubrication grease | 1400 |
| Speed ratings Lubrication oil | 1800 |
| Mass | 10.3 |
| Dimensions (d) | 120 |
| Dimensions (d2) | 135 |
| Dimensions (D1) | 168 |
| Dimensions (b) | 5.5 |
| Dimensions (k) | 3 |
| Dimensions (r mim) | 2 |
| Abutment and filet dimensions (da min) | 131 |
| Abutment and filet dimensions (Da max) | 189 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.37 |
| Calculation factors (Y1) | 1.8 |
| Calculation factors (Y2) | 2.7 |
| Calculation factors (Y0) | 1.8 |
