Product

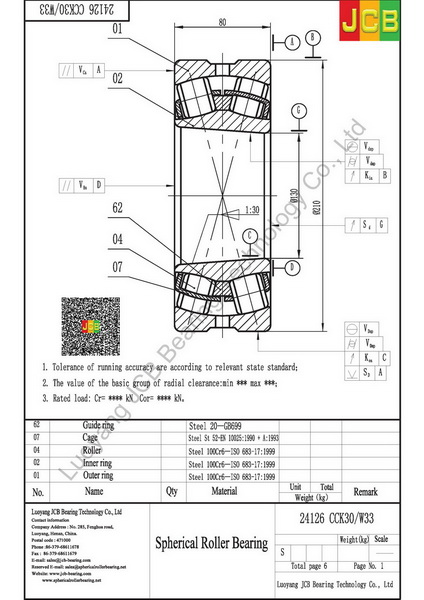

Drawing
24126 CCK30/W33
Specifications
| Principal dimensions (d) | 130 |
| Principal dimensions (D) | 210 |
| Principal dimensions (B) | 80 |
| Basic load ratings dynamic (C) | 587 |
| Basic load ratings static (C0) | 1000 |
| Fatigue load limit (Pu) | 100 |
| Speed ratings Lubrication grease | 1300 |
| Speed ratings Lubrication oil | 1700 |
| Mass | 11 |
| Dimensions (d) | 130 |
| Dimensions (d2) | 146 |
| Dimensions (D1) | 180 |
| Dimensions (b) | 5.5 |
| Dimensions (k) | 3 |
| Dimensions (r mim) | 2 |
| Abutment and filet dimensions (da min) | 141 |
| Abutment and filet dimensions (Da max) | 199 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.35 |
| Calculation factors (Y1) | 1.9 |
| Calculation factors (Y2) | 2.9 |
| Calculation factors (Y0) | 1.8 |
