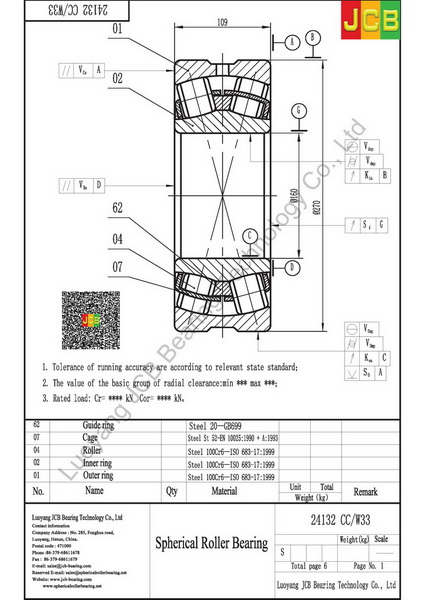

Drawing
24132 CC/W33
Specifications
| Principal dimensions (d) | 160 |
| Principal dimensions (D) | 270 |
| Principal dimensions (B) | 109 |
| Basic load ratings dynamic (C) | 1040 |
| Basic load ratings static (C0) | 1760 |
| Fatigue load limit (Pu) | 163 |
| Speed ratings Lubrication grease | 950 |
| Speed ratings Lubrication oil | 1300 |
| Mass | 25 |
| Dimensions (d) | 160 |
| Dimensions (d2) | 181 |
| Dimensions (D1) | 228 |
| Dimensions (b) | 8.3 |
| Dimensions (k) | 4.5 |
| Dimensions (r mim) | 2.1 |
| Abutment and filet dimensions (da min) | 172 |
| Abutment and filet dimensions (Da max) | 258 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.4 |
| Calculation factors (Y1) | 1.7 |
| Calculation factors (Y2) | 2.5 |
| Calculation factors (Y0) | 1.6 |
