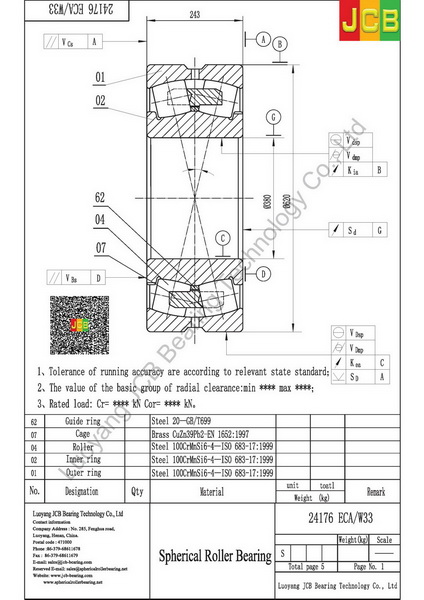

Drawing
24176 ECA/W33
Specifications
| Principal dimensions (d) | 380 |
| Principal dimensions (D) | 620 |
| Principal dimensions (B) | 243 |
| Basic load ratings dynamic (C) | 5060 |
| Basic load ratings static (C0) | 9800 |
| Fatigue load limit (Pu) | 710 |
| Speed ratings Lubrication grease | 340 |
| Speed ratings Lubrication oil | 430 |
| Mass | 300 |
| Dimensions (d) | 380 |
| Dimensions (d2) | 446 |
| Dimensions (D1) | 529 |
| Dimensions (b) | 16.7 |
| Dimensions (k) | 9 |
| Dimensions (r mim) | 5 |
| Abutment and filet dimensions (da min) | 400 |
| Abutment and filet dimensions (Da max) | 600 |
| Abutment and filet dimensions (ra max) | 4 |
| Calculation factors (e) | 0.37 |
| Calculation factors (Y1) | 1.8 |
| Calculation factors (Y2) | 2.7 |
| Calculation factors (Y0) | 1.8 |
