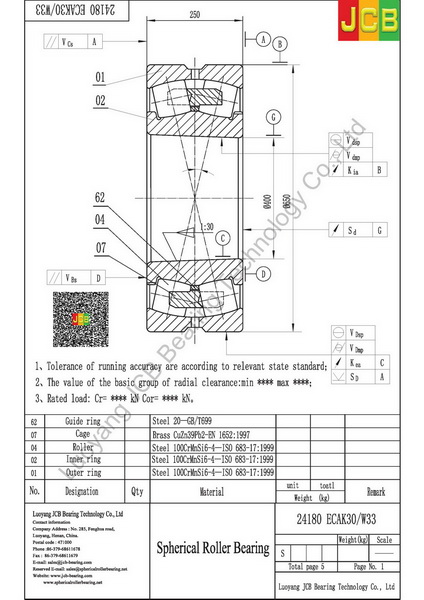

Drawing
24180 ECAK30/W33
Specifications
| Principal dimensions (d) | 400 |
| Principal dimensions (D) | 650 |
| Principal dimensions (B) | 250 |
| Basic load ratings dynamic (C) | 5350 |
| Basic load ratings static (C0) | 10600 |
| Fatigue load limit (Pu) | 735 |
| Speed ratings Lubrication grease | 320 |
| Speed ratings Lubrication oil | 400 |
| Mass | 340 |
| Dimensions (d) | 400 |
| Dimensions (d2) | 468 |
| Dimensions (D1) | 554 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 6 |
| Abutment and filet dimensions (da min) | 426 |
| Abutment and filet dimensions (Da max) | 624 |
| Abutment and filet dimensions (ra max) | 5 |
| Calculation factors (e) | 0.37 |
| Calculation factors (Y1) | 1.8 |
| Calculation factors (Y2) | 2.7 |
| Calculation factors (Y0) | 1.8 |
