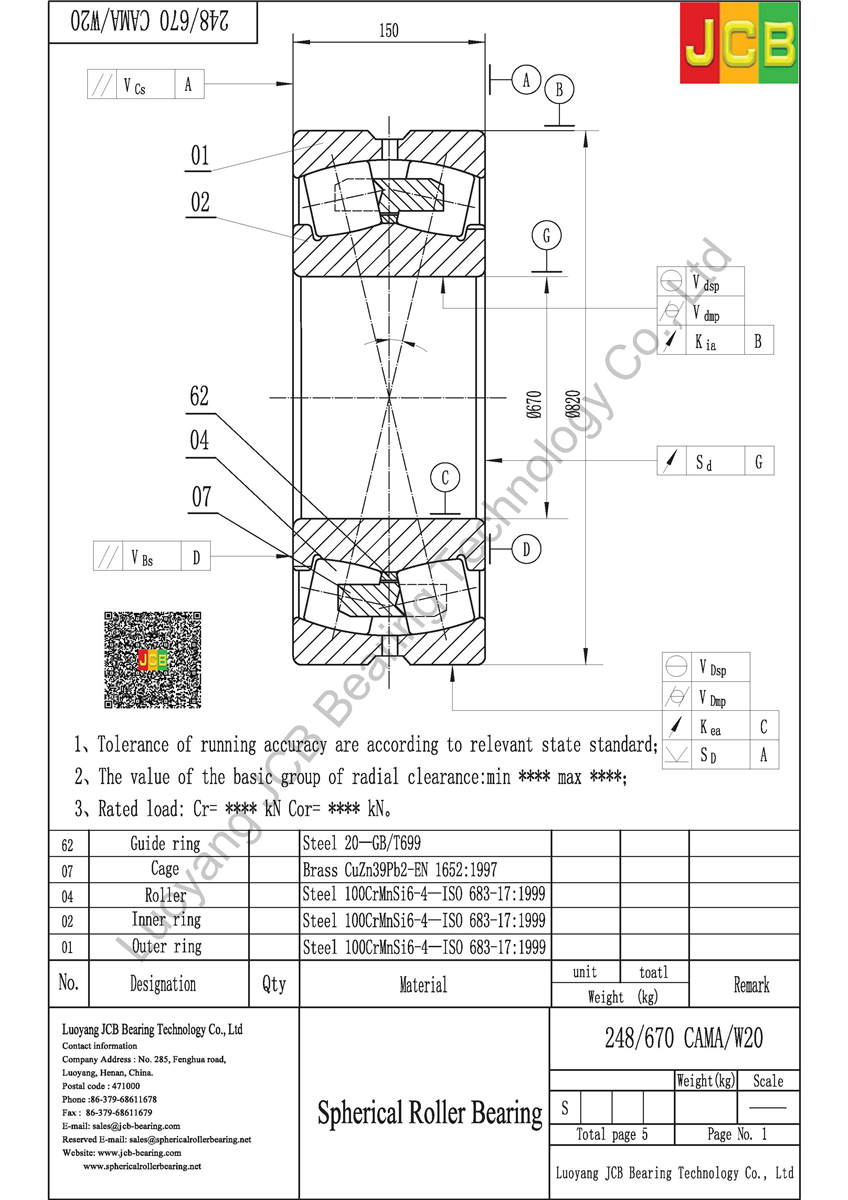

Drawing
248/670 CAMA/W20
Specifications
| Principal dimensions (d) | 670 |
| Principal dimensions (D) | 820 |
| Principal dimensions (B) | 150 |
| Basic load ratings dynamic (C) | 3110 |
| Basic load ratings static (C0) | 9500 |
| Fatigue load limit (Pu) | 655 |
| Speed ratings Lubrication grease | 280 |
| Speed ratings Lubrication oil | 360 |
| Mass | 172 |
| Dimensions (d) | 670 |
| Dimensions (d2) | 718 |
| Dimensions (D1) | 786 |
| Dimensions (b) | – |
| Dimensions (k) | 9 |
| Dimensions (r mim) | 4 |
| Abutment and filet dimensions (da min) | 685 |
| Abutment and filet dimensions (Da max) | 805 |
| Abutment and filet dimensions (ra max) | 3 |
| Calculation factors (e) | 0.16 |
| Calculation factors (Y1) | 4.2 |
| Calculation factors (Y2) | 6.3 |
| Calculation factors (Y0) | 4 |
