Product

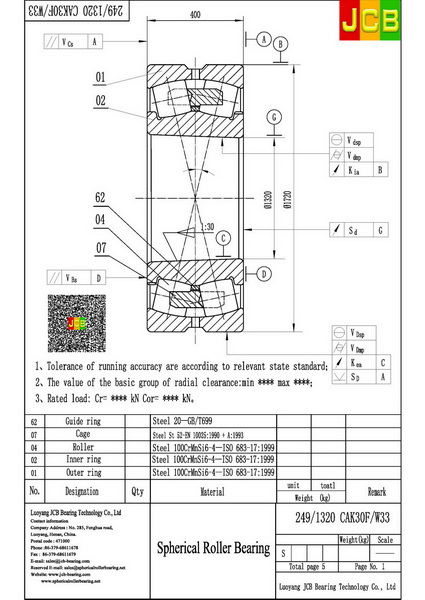

Drawing
249/1320 CAF/W33
Specifications
| Principal dimensions (d) | 1320 |
| Principal dimensions (D) | 1720 |
| Principal dimensions (B) | 400 |
| Basic load ratings dynamic (C) | 16100 |
| Basic load ratings static (C0) | 49000 |
| Fatigue load limit (Pu) | 2550 |
| Speed ratings Lubrication grease | 85 |
| Speed ratings Lubrication oil | 110 |
| Mass | 2500 |
| Dimensions (d) | 1320 |
| Dimensions (d2) | 1445 |
| Dimensions (D1) | 1584 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 7.5 |
| Abutment and filet dimensions (da min) | 1348 |
| Abutment and filet dimensions (Da max) | 1692 |
| Abutment and filet dimensions (ra max) | 6 |
| Calculation factors (e) | 0.21 |
| Calculation factors (Y1) | 3.2 |
| Calculation factors (Y2) | 4.8 |
| Calculation factors (Y0) | 3.2 |
