Product

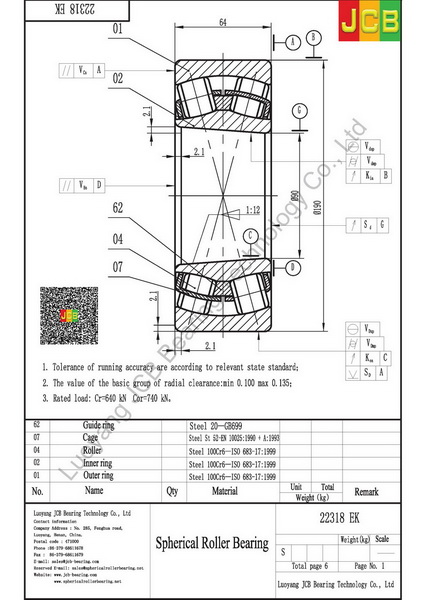

Drawing
22318 EK
Specifications
| Principal dimensions (d) | 90 |
| Principal dimensions (D) | 190 |
| Principal dimensions (B) | 64 |
| Basic load ratings dynamic (C) | 610 |
| Basic load ratings static (C0) | 695 |
| Fatigue load limit (Pu) | 67 |
| Speed ratings Lubrication grease | 1800 |
| Speed ratings Lubrication oil | 2400 |
| Mass | 9.05 |
| Dimensions (d) | 90 |
| Dimensions (d2) | 113 |
| Dimensions (D1) | 161 |
| Dimensions (b) | 11.1 |
| Dimensions (k) | 6 |
| Dimensions (r mim) | 3 |
| Abutment and filet dimensions (da min) | 104 |
| Abutment and filet dimensions (Da max) | 176 |
| Abutment and filet dimensions (ra max) | 2.5 |
| Calculation factors (e) | 0.33 |
| Calculation factors (Y1) | 2 |
| Calculation factors (Y2) | 3 |
| Calculation factors (Y0) | 2 |
Description
