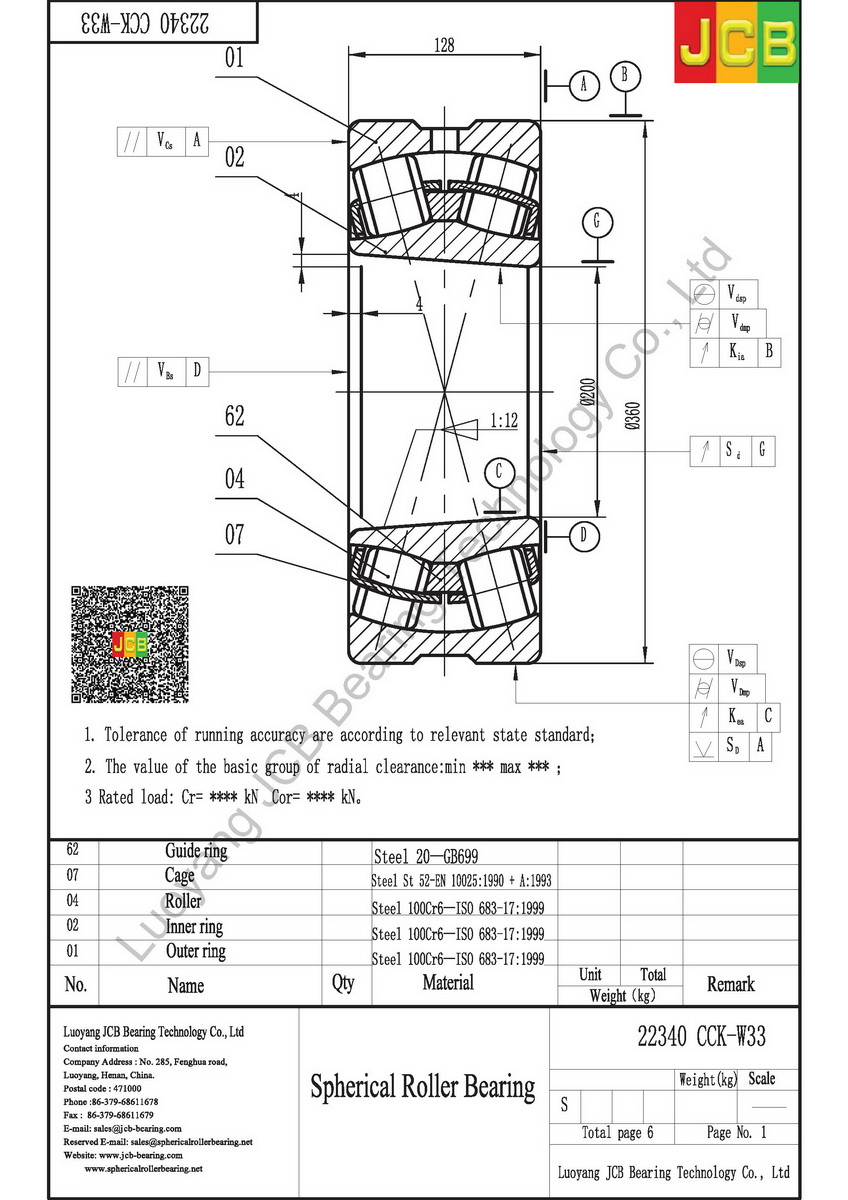

Drawing
22340 CC/W33
Specifications
| Principal dimensions (d) | 200 |
| Principal dimensions (D) | 420 |
| Principal dimensions (B) | 138 |
| Basic load ratings dynamic (C) | 2320 |
| Basic load ratings static (C0) | 2900 |
| Fatigue load limit (Pu) | 224 |
| Speed ratings Lubrication grease | 850 |
| Speed ratings Lubrication oil | 1100 |
| Mass | 95 |
| Dimensions (d) | 200 |
| Dimensions (d2) | 249 |
| Dimensions (D1) | 351 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 5 |
| Abutment and filet dimensions (da min) | 220 |
| Abutment and filet dimensions (Da max) | 400 |
| Abutment and filet dimensions (ra max) | 4 |
| Calculation factors (e) | 0.33 |
| Calculation factors (Y1) | 2 |
| Calculation factors (Y2) | 3 |
| Calculation factors (Y0) | 2 |
